APPLICATION:

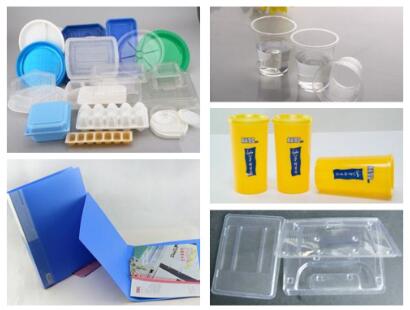

We adopt advanced international technology and make considerable innovations on design,manufacturing and accessories for HPC single layer vertical series plastic sheet extruder.The machine is mainly used to produce plastic sheet of PP,PS.Then the sheet can be taken to produce such as disposable cups,jelly cups,plastic packing containers,file and so on.
PRODUCT:
Main technical specifications:
| 型号 | Model | HPC-800(φ105) | HPC-1000(φ110) | HPC-1200(φ120) |
| 模对宽度 | Width Of Die Head | 800MM | 1000MM | 1200MM |
| 适用原料 | Material | PP.PS | PP.PS | PP.PS |
| 片材宽度 | Width Of Sheet | 730MM | 900MM | 1000MM |
| 三辊尺寸 | Three Roller Size | Φ316MM*800MM*3 | Φ420MM*1000MM*3 | Φ420MM*1200MM*3 |
| 立式 | Vertical | |||
| 片材厚度 | Thickness Of Sheet | 0.3-2.0MM | 0.3-2.0MM | 0.3-2.0MM |
| 螺杆尺寸 | Screw Size | Φ105*33 | Φ110*34 | Φ120*34 |
| 总功率 | Total Power | 90KW | 100KW | 120KW |
| 工作功率 | Working Power | 55KW | 60KW | 72KW |
| 线速 | Speed | 15-20M/ 分 | 15－30M/分 | 15－50M/分 |
| 产量 | Capacity | 180KG/小时 | 220KG/小时 | 280KG/小时 |
| 设备尺寸 | Dimension | 14*2.5*2.2 | 15*2.6*2.3 | 16*2.8*2.4 |
| 设备重量 | Weight | 8吨（T） | 9吨（T） | 11吨（T） |
| 专用齿轮箱：硬齿面，高扭矩，低噪音 | 废料收卷系统 |
| Hard gear,Strong torque,low noise | Waster Rewinding system |
| 螺杆材料：38crMoAL 氮化处理层厚：0.4－0.7mmm | 辊筒表面镀处理0.08－0.18MM 表面硬度：HRC58-62 粗糙度：≧Ra |
| Screw material:38 crMoAL Nitrogen treatment:0.4-0.7mm | Roller Hard Chromium plating 0.08-0.18mm Hardness:HRC58-62 Surface roughness:≧Ra |
| 螺杆风冷系统 | 辅机电动控制移动 |
| Screw with air cooling system | Moving with electromotion control system |
| 螺杆五区加热控制 | 双工位龙门式成品收卷系统 |
| 5 Heating zones of the screw | Double post gantry traction rewinding system |
| 液压不停机换网系统 | 模头三区加热控制 |
| Uninterrupted hydraulic screen changer system | 4 Heating zones of the die head |
| 节能型模头，表面电镀抛光处理 | 自动进料系统 |
| Energy-saving Die head with plating&polishing | Auto Material Feeding system |
| 同步45度 三辊压光机控制系统 | PID调节有记忆干扰数字型温控仪 |
| Synchronous 45 degree Three roller control system | PID controller adjusting memory |
| 整机全变频调速控制 | 其它电器部分(日本） |
| Full frequency conversion control | Other electric part（Japan） |
